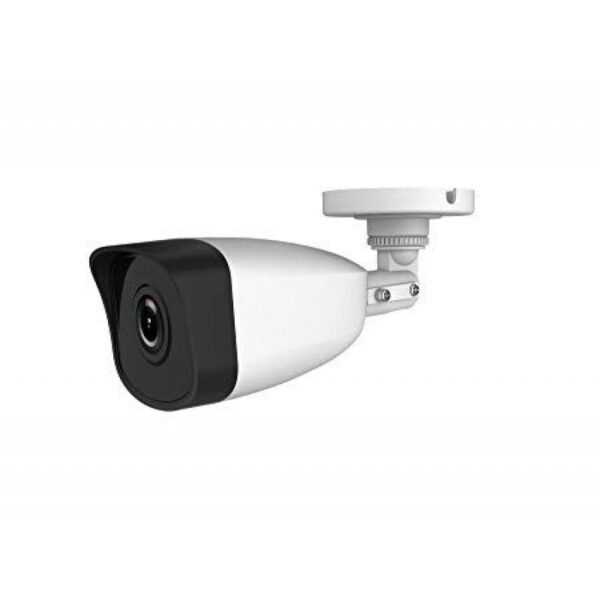

Hikvision 2mp Outdoor Fixed Bullet Network Camera with Build-in Mic Outdoor 4mm (IPC-B120)

Description

PRODUCT SPECIFICATION:

• Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @(F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Wide Dynamic RangeDWDR
• Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
• DNR3D DNR
• Day & NightIR cut filter
• Auto-IrisNo

• Lens
• ApertureF2.0
• FocusFixed
• FOV2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
• Lens MountM12
• Focal Length2.8 mm

• Network
• Alarm TriggerMotion detection, video tampering alarm, illegal login
• ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
• APIISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User,
• ClientHiLookVision PC Client, HiLookVision App
• Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware VersionV5.5.71

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio1 Built-in mic, mono sound

• Image
• Image EnhancementBLC, 3D DNR
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Scheduled
• Max. Resolution1920 × 1080
• Main Stream50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),

• IR
• IR RangeUp to 30 m
• Wavelength850 nm

• Wi-Fi
• Wireless StandardsIEEE 802.11b/g/n
• Frequency Range2.4 GHz to 2.4835 GHz
• Transfer Rates11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
• Protocol802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
• Channel Bandwidth20 MHz/40 MHz
• Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Wireless RangeUp to 50 m (The performance varies based on actual environment)

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• General
• Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
• Power Consumption And Current12 VDC, 0.4 A, max. 5 W
• MaterialFront cover: metal, back cover: plastic
• DimensionsCamera: 99 mm × 68 mm × 66 mm (3.9″ × 2.7″ × 2.6″) With package: 172 mm × 110 mm × 99 mm (6.8″ × 4.3″ × 3.9″)
• WeightCamera: 272 g (0.6 lb.) With package: 517 g (1.1 lb.)
• Protection LevelIP66
• Operating Condition-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

• Compression Standard
• H.264+Main stream supports
• H.264 TypeBaseline Profile/Main Profile
• Video CompressionMain stream: H.264,Sub-stream: H.264/MJPEG,
• Video Bit Rate32 Kbps to 8 Mbps
