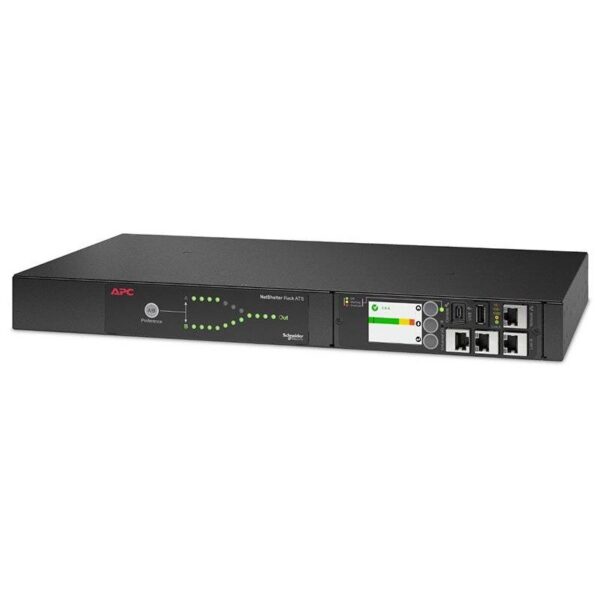

APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz

0 out of 5
( There are no reviews yet. )

₦1,840,000.00


Categories: ,
Add to wishlist

[alpus_aprs_ai_summary]

Description

Specifications

Overview
Lead time Usually in Stock
Main
Main Input Voltage 230 V AC 1 phase
Product or component type Automatic transfer switch
Main Output Voltage 230 V AC 1 phase
Input Connection Type IEC 60320 C20 16 A 2P + E
number of rack unit 1U
Provided equipment Mounting hardware
Rack mounting brackets
Physical
Colour Black
Height 4.4 cm
Width 43.2 cm
Depth 23.6 cm
Net weight 3.74 kg
mounting location Front
Mounting preference No preference
mounting mode Rack-mounted
mounting position Horizontal
Input
Network frequency 50/60 Hz
[In] rated current 16 A
Permissible voltage 207…253 V
Max line current 20 A
Input current limits 20 A
Load capacity 3700 VA
Output
Number of power socket outlets 8 IEC 60320 C13 10 A 2P + E
1 IEC 60320 C19 16 A 2P + E
Number of power socket outlets 9
Protection type Without circuit breaker
Power cable length 2.44 m
Conformance
product certifications cUL listed
CE
UL listed
Standards EN 55022 class A
FCC part 15 class A
Environmental
Ambient air temperature for operation -5…45 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0…15240 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 35.500 cm
Package 1 Length 60.000 cm
Package 1 Weight 5.492 kg
Unit Type of Package 2 P12
Number of Units in Package 2 40
Package 2 Height 126.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 233.000 kg


Contractual warranty
Warranty
